◆ Product Overview

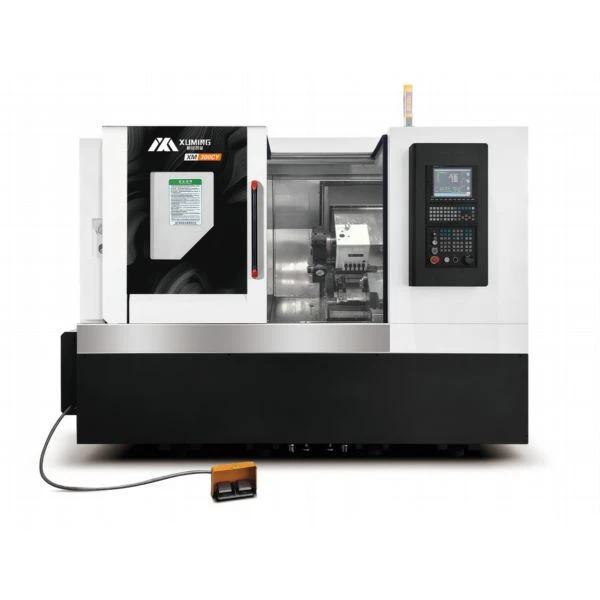

This High-Precision Turn-Mill Machining Center is an integrated manufacturing solution that combines turning, milling, drilling, and tapping into a single, high-performance platform. Engineered for micron-level precision, it features an advanced Y-axis system that enables full-process machining of complex rotational components in one setup. This significantly reduces handling time, eliminates secondary clamping errors, and ensures consistent quality for parts with tight dimensional and geometric tolerances.
◆ Key Features
Exceptional Motion Control and Positioning
The machine utilizes high-precision roller linear guideways paired with pre-tensioned ball screws to ensure smooth, stable movement. Integrated laser pitch error compensation effectively mitigates thermal deformation and long-term wear, maintaining superior positioning and repeatability across X, Y, and Z axes for high-precision contouring and threading.
High-Performance Spindle & Milling Capability
Equipped with a precision built-in spindle, the machine delivers high-speed rotation with minimal radial and axial runout. For specialized needs, an optional motorized spindle offers enhanced indexing accuracy and speed. The high-rigidity BMT live tool turret ensures stable performance during side milling, face milling, and boring operations.
Streamlined Workflow and Enhanced Accuracy
With Y-axis interpolation and direct motion capabilities, the machine handles complex geometries with ease. An optional sub-spindle allows for seamless front-and-back machining in a single cycle. Additionally, a programmable hydraulic or servo tailstock provides rigid support for shaft-type components, optimizing coaxiality and concentricity.
Robust Stability and Durability
The one-piece slant bed design, treated with stress-relief aging, provides excellent vibration damping for heavy or precise cuts. A fully enclosed splash guard and an automatic lubrication system protect critical components from coolant and debris, ensuring long-term operational reliability.
◆ Applications
This machine is ideal for high-precision, small-batch production in the following sectors:
Automotive:
High-precision engine and transmission components.
Electronics:
Connectors and precision hardware.
Lighting:
Complex decorative and functional parts.
General Engineering:
Small precision shafts and complex rotational parts with curved surfaces.
◆ Optional Configurations
- Tool setting probe (Automatic tool measurement)
- Automatic bar feeder (For continuous production)
- Multi-angle live tool holders
- High-speed motorized spindle
