Our industrial CNC turning machines are engineered for rigid metal removal and stable dimensional repeatability in continuous production environments. Built on a cast-iron Meehanite bed with finite element analysis (FEA) optimized ribbing, the machine structure dampens high-frequency cutting vibrations.
Designed for precision job shops and high-volume production lines, the platform accommodates manual loading configurations and automated bar feeder or gantry robot integration. Drive systems utilize preloaded C3-class ball screws and linear guideways, securing micro-meter level positioning accuracy across multi-shift operations.
-
![Compact Vertical Lathe Machine]()
Compact Vertical Lathe MachineThis small vertical lathe is specifically engineered for machining small to medium-sized rotary components, including discs, sleeves, and flanges. Featuring a vertical spindle layout, the machine...read more -
![CNC Vertical Turning Center]()
CNC Vertical Turning CenterEngineered for heavy-duty performance, this CNC Vertical Turning Lathe features a robust construction that ensures high rigidity and exceptionally stable operation. It is designed to deliver...read more -
![Flat-Bed CNC Lathe System]()
Flat-Bed CNC Lathe SystemThe machine features a large-span carriage designed to eliminate overturning moments. This ensures exceptionally stable operation, extends the service life of the guide rails, and maintains...read more -
![High-Stiffness Milling-Turning Center]()
High-Stiffness Milling-Turning CenterThis High-Rigidity Turn-Mill Center is specifically engineered for heavy-duty cutting and precision machining under high-load conditions. Featuring a high-strength integrated casting structure and...read more -
![High-Accuracy Mill-Turn Workcenter]()
High-Accuracy Mill-Turn WorkcenterThis High-Precision Turn-Mill Machining Center is an integrated manufacturing solution that combines turning, milling, drilling, and tapping into a single, high-performance platform. Engineered...read more -
![Precision High-Speed CNC Turning Lathe]()
Precision High-Speed CNC Turning LatheThis Y-axis interpolation turning and milling compound machine seamlessly integrates turning and milling functions with advanced interpolation motion. Designed for high efficiency, it is capable...read more -
![CNC Turn-Mill Complex With Y-Axis]()
CNC Turn-Mill Complex With Y-AxisThis integrated Y-axis turn-mill center is designed to handle complex workpieces in a single setup. By merging turning and milling capabilities, it significantly enhances processing efficiency and...read more -
![CNC Slanted Bed Turning Center]()
CNC Slanted Bed Turning CenterThe bed design is optimized using Finite Element Analysis (FEA). Featuring a wide base and a robust architecture, the machine provides exceptional vibration absorption, high rigidity, and superior...read more -

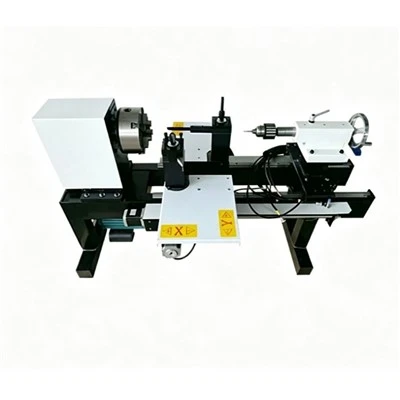

![CNC Lathe With Automatic Tool Changer (ATC)]()
CNC Lathe With Automatic Tool Changer (ATC)Automation is key to profitability, and our CNC Lathe with Automatic Tool Changer (ATC) is designed to minimize downtime. By integrating a fast, high-capacity tool-change system, we support the...read more -
![Heavy-Duty Turn-Mill Machine]()
Heavy-Duty Turn-Mill MachineFor large, complex workpieces requiring high torque and absolute rigidity, the Heavy-Duty Turn-Mill Machine is our powerhouse solution. This machine is the result of over 20 years of engineering...read more -
![Precision Micro-Turning Machine]()
Precision Micro-Turning MachineAs parts get smaller, tolerances get tighter. Our Precision Micro-Turning Machine is the solution for small component industries requiring micron-level accuracy. We drew on our 20 years of...read more -
![High-Speed CNC Lathe]()
High-Speed CNC LatheSpeed and precision are often difficult to balance, but our High-Speed CNC Lathe proves they can coexist. This equipment is specifically designed for high-volume production environments, featuring...read more
↵
Key Features
High-Rigidity Slanted Bed Design:
The 30 degree integrated slant bed lowers the center of gravity, improves chip evacuation directly into the lower chip conveyor, and minimizes thermal deformation under heavy axial loads.
Modular Automation Interface:
Standardized electrical and pneumatic interfaces on the enclosure flank support immediate integration with bar feeders, gantry loaders, and articulated industrial robots.
Thermal Isolation Spindle Assembly:
Headstock design incorporates cooling fins and thermal symmetry principles to restrict spindle thermal growth to within 0.01 mm during 8-hour continuous heavy cutting.
Rigid Turret Indexing:
Curvic coupling mechanism clamps the turret disc with hydraulic locking force up to 32 kN, maintaining tool tip repeatability of +/- 0.002 mm after 100,000 index cycles.
Product Range
|
Model |
Max. Swing Over Bed |
Max. Turning Diameter |
Max. Turning Length |
Spindle Bore |
Main Motor Power |
Target Application |
|
TC-200 |
520 mm |
350 mm |
500 mm |
65 mm |
11/15 kW |
Small-to-medium precision shafts, fittings, and bushings |
|
TC-300 |
650 mm |
450 mm |
750 mm |
82 mm |
15/18.5 kW |
Automotive transmission components, hydraulic valves |
|
TC-400 |
780 mm |
560 mm |
1250 mm |
105 mm |
22/26 kW |
Oil & gas connectors, aerospace shafts, heavy flanges |
|
TMC-250 (Live Tooling) |
550 mm |
380 mm |
600 mm |
75 mm |
15/18.5 kW + 4.5 kW (Milling) |
Complex prismatic parts requiring turning, milling, and drilling in one setup |
Technical Specifications
|
Specification |
Details |
|
Bed Structure |
30-degree slanted Meehanite cast iron bed; thermal distortion resistance verified via laser interferometer testing. |
|
Spindle Configuration |
Cartridge-type spindle supported by high-precision P4 angular contact ball bearings; oil-air lubrication system. |
|
Axis Drive |
C3 double-nut preloaded ball screws (Diameter: 32 mm to 40 mm); direct-coupled AC servo motors with absolute encoders. |
|
Feedrates (X / Z Axis) |
Rapid traverse rate: 24 m/min (X-axis) / 30 m/min (Z-axis). |
|
Turret Options |
12-station hydraulic turret (indexing time: 0.2 seconds) or servo-driven turret; optional BMT55/VDI40 live tooling interface. |
|
Controller Compatibility |
Standard Fanuc 0i-TF Plus, Siemens SINUMERIK 828D, or Mitsubishi M80 series. |
|
Cooling System |
High-pressure coolant pump (bar pressure: 1.5 - 7 MPa configurable); dual-tank chip conveyor layout (hinged or scraper type). |
Materials & Surface Finishes
Supported Workpiece Materials
Carbon & Alloy Steels: AISI 1045, 4140, 4340, 8620.
Stainless Steels: Austenitic (304, 316L), Martensitic (410, 440C), Duplex (2205).
Non-Ferrous Metals: Aluminum alloys (6061-T6, 7075-T6), Brass, Bronze, Copper.
Superalloys & Titanium: Inconel 718, Titanium Grade 5 (Ti-6Al-4V).
Achievable Surface Finishes & Tolerances
Dimensional Tolerance: IT6 to IT7 standard ( +/- 0.005 mm achievable under stable thermal conditions).
Surface Roughness: Ra 0.4 um to 1.6 um via finish turning passes; Ra 0.2 um achievable with diamond burnishing tools.
Roundness (Out-of-Roundness): <= 0.002 mm.
Applications
Automotive Drivetrain:
Machining of CV joints, transmission shafts, steering worm gears, and differential housings from forged blanks.
01
Aerospace & Defense:
Turning and contouring of actuator cylinders, high-pressure hydraulic manifolds, and landing gear pin components.
02
Medical Technology:
Producing stainless steel bone screws, titanium spinal implant rods, and surgical instrument adapters.
03
Fluid Control & Hydraulics:
Manufacturing spool valves, valve bodies, and threaded pipe fittings requiring strict concentricity between internal bores and external threads.
04
Every machine is manufactured under ISO 9001 quality management systems and CE compliance regulations, undergoing a rigorous multi-stage factory verification protocol prior to crating:
Laser Interferometer Calibration:
Positioning and repeatability verified across all axes per ISO 230-2 standards.
Ballbar Circularity Test:
Dynamic contouring accuracy checked under simultaneous 2-axis circular interpolation.
Spindle Runout Verification:
Dynamic radial and axial runout measured at the spindle nose kept within 0.003 mm.
72-Hour Dry-Run Burn-In Test:
Continuous spindle operation at maximum rated RPM to detect thermal anomalies and hydraulic pressure stability.
Inspection Report Delivery:
Each machine ships with an individual geometric inspection certificate, laser calibration chart, and material certification for critical castings.
Custom Manufacturing Process
Technical Consultation & Part Drawing Review: Engineering team evaluates customer part geometry, material hardness, cycle time targets, and tolerance stack-ups.
Turnkey Solution Engineering: Design of custom soft jaws, special boring bars, hydraulic fixture clamping, and customized G-code part programs.
Machine Assembly & Electrical Integration: Bed casting curing, scraping, linear guide alignment, and wiring harness routing in temperature-controlled assembly bays.
Sample Machining & Trial Run (FAT): Machining client components at our facility using client-specified raw material; supplying CMM inspection reports for sign-off.
Crating & Export Logistics: Vacuum-sealed anti-corrosion barrier packaging, ISPM 15 heat-treated wooden crating, and secure container lashing.
Technical Support & After-Sales Service
Installation & Commissioning:
Optional on-site commissioning by factory-trained service engineers, including geometric leveling and operator training.
Spare Parts Inventory:
Core wear items (spindle bearings, wipers, hydraulic valves, chuck jaws) stocked in regional distribution hubs for 48-hour dispatch.
Remote Diagnostics:
Ethernet-ready CNC controllers allow remote ladder logic diagnosis, parameter backup, and software troubleshooting by senior applications engineers.
Warranty Terms:
12-month standard warranty covering structural castings, spindle assemblies, and electronic servo drives against manufacturing defects.
FAQ
Request a Quote
To receive a detailed quotation and formal RFQ package (including FOB/CIF shipping terms and compliance certificates), please provide the following parameters in your inquiry:
Part Material & Hardness (e.g., AISI 4140, 28-32 HRC)
Maximum Component Dimensions (Diameter & Length)
Required Tolerances & Critical Surface Finish (Ra)
Target Production Volume / Batch Size
Automation Requirements (Manual loading vs. Bar feeder vs. Robotic integration)
Preferred CNC Controller (Fanuc / Siemens / Mitsubishi)
We're well-known as one of the leading CNC turning machine manufacturers in China, featured by quality products and low price. Please rest assured to buy discount CNC turning machine made in China here from our factory. We also accept customized orders.
